Side Mount Carry Handle (with Cap)

https://www.broadplast.com/web/image/product.template/100/image_1920?unique=9aefe6e

BP- B1101A

Description Kayak Side Mount Carry Handles (with Cap)
Material Handle: PVC/TPR
Webbing: PP
Cap: PP
SizeHandle length: 5"
Handle diameter: 0.96"
Webbing: Custom Size

1.00 1.0 USD 1.00

1.00

    This combination does not exist.

    Product details

    B1101 Series Side Mount Carry Handle, as known as kayak handle, a replacement handle for carrying your kayak, is the most common handle style for Kayak. B1101 Series Plastic Grip Handle features high quality, durable, ergonomic and comfortable to hold. Not only designed for kayaks and canoes but can also be used for backpacks, bags, luggage, suitcases, outdoor equipment, and any other potential usage.
    We provide a perfect solution for handling requirements.
     You can customize the webbing length, post-process the strap end, such as with or without the caps and grommets, overmolding and drilling or not, and also fold the end to strengthen the handle.

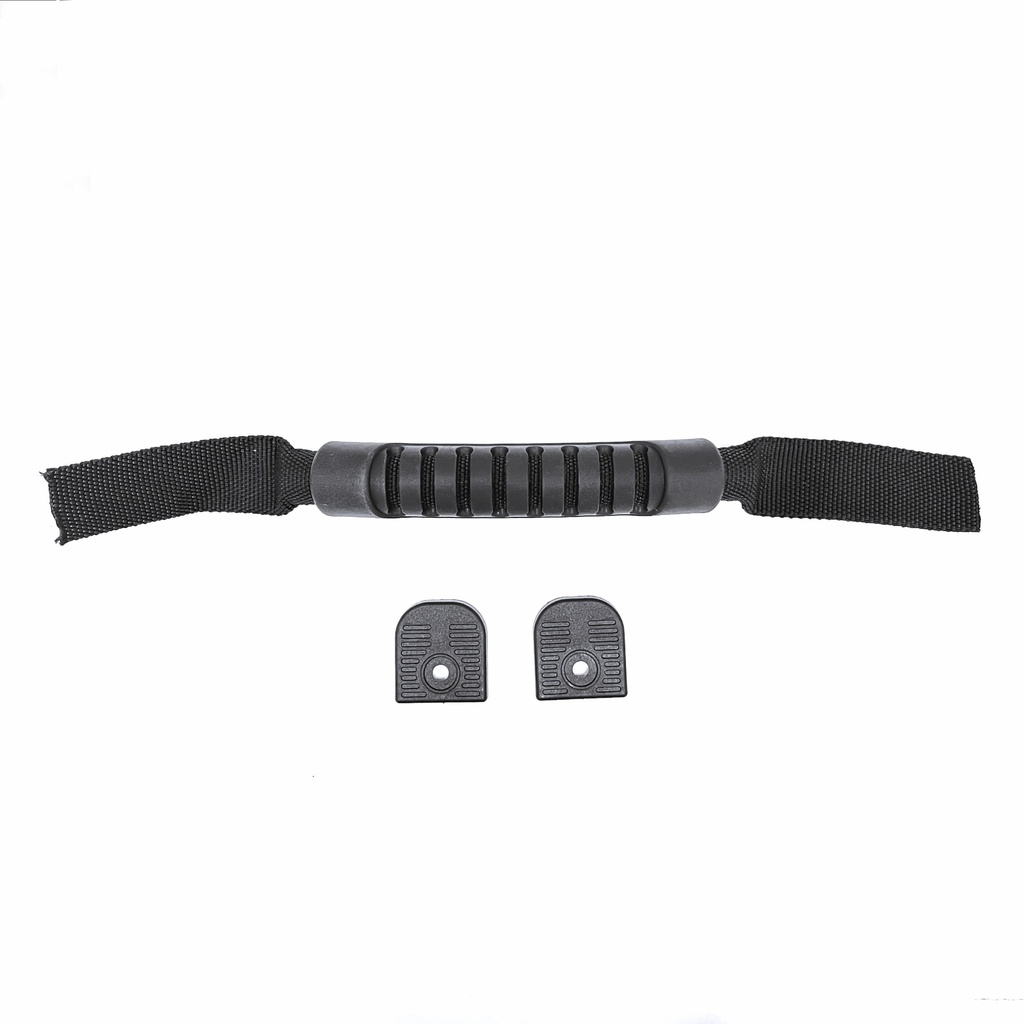

    B1101A Plastic Handle doesn't have any post-process end, but includes the Caps, it will serve the purpose of a washer. And you can use Self Tapping Screws or Rivets to fix the handle on your products.
    It has only one mounting  hole on the cap, which diameter is around 5.4 mm.

    The outer covering plastic part is around 127mm(5 inch), the diameter is around 25mm(0.96 inch).
    *Instructions and mounting hardware are not included.


    Customizable Parts:

    • Material:  PVC, TPR  or any other material you prefer, depends on your requirements and costs.
    • Length: Total minimum length is around 282mm(11.125inch)
    • Handle Hardness
    • Colors

    Other B1101 Series Products:


    Specification

    Product No.
    Material Handle Size
    Webbing Size
    Holes
    End finals
    BP-1101A
    Handle: PVC/TPR, Webbing: PP, Cap: PP
    Length 5", DIA. 0.96" Custom
    N
    NA
